What it is

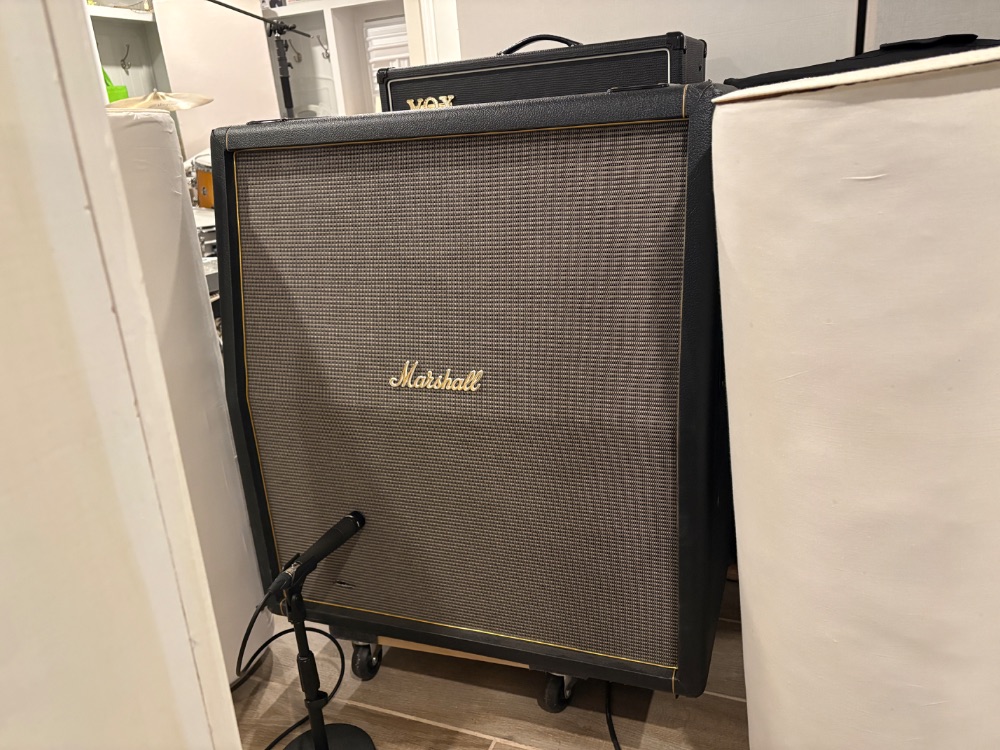

The lead was right, so I kept it whole. Black Dog wasn't a wall of amps ... Page went into a Helios desk through an 1176 limiter, which is exactly what this chain is: @ripper's Marshall Plexi Super Lead 1959 into @outmodedelectronics' Greenback 1960TV 4x12 with an SM57 on it, then @dahmanmusic's 1176 (color-only, clean) sitting after the amp to squash and thicken it the way the record does. EQ is +3 in the mids with a touch of low and top ... that snarly midrange is the whole riff. Small room reverb at 13% for glue, and a 310 ms delay parked off on a footswitch for the solo.
You're in E standard and so is the song, so nothing retuned.
On the Telecaster: neck humbucker, full (not split), tone rolled to about 8 ... that gets closest to the fat Les Paul bridge tone driving the riff; flip to the bridge single-coil for the sparse verse answers where you want the pick attack. If you want it properly right, the Gibson Explorer's bridge humbucker is the closer match to Page's Number One and it's already in E standard.
The chain
Signal order, in front of the amp first. Every block is a real capture of real gear — somebody else's work, named here, and downloaded on your own account. Nothing here is a model of a model.
-
Amp
Capture #40971 ↗
The capture the whole rig is built on
Maker not recorded Licence not recorded
-
Cabinet
Capture #45022 ↗
The speaker impulse response
Maker not recorded Licence not recorded
-
Pedal
Capture #6009 ↗
After the amp · drive clean
Maker not recorded Licence not recorded
Powered by
Every capture on this page is hosted by them and made by one of their creators.
The effects
-
Compressor
Evens out the picking — country, funk, and clean parts that need to sustain.
- Squeeze
- 4:1 above -18 dB
- Attack
- 3 ms
- Release
- 120 ms
- Knee
- 6 dB
- Make-up
- +3 dB
-
EQ
Mids pushed forward so the guitar cuts through a mix.
- Lows
- +1 dB at 120 Hz
- Mids
- +3 dB at 750 Hz
- Highs
- +1.5 dB at 3500 Hz
-
Delay switched off
A short echo, close enough to thicken a riff rather than answer it.
- Time
- 310 ms
- Feedback
- 25%
- Mix
- 16%
-
Reverb
A medium room. You can hear the walls.
- Size
- 40%
- Damping
- 50%
- Mix
- 13%
- Pre-delay
- 20 ms
- Width
- 80%
Play it
Add it to your rigs and it shows up everywhere you use ManifesTone — on your phone, and in the VST3 / AU plugin in your DAW. Or start from nothing: name a song and let it build you a rig of its own.
